Measuring large parts rarely happens under ideal conditions. Unlike controlled metrology labs, real-world environments—such as rail yards, power plants, or mining sites—introduce constraints that directly affect the 3D scanning experience. Surfaces are dusty. Geometries are complex and enormous. Access to an external power source is not always available. Yet expectations remain the same: fast measurement, reliable scan data, and metrology-grade accuracy.
Nevertheless, conventional 3D measurement systems are typically built around laboratory assumptions: stable floors, controlled temperatures, fixed setups, unlimited power, and clean parts. Real-world conditions offer none of these elements. Instead, measurements are performed in environments exposed to vibration, humidity, and temperature fluctuations—often alongside massive equipment weighing hundreds of tons.
To address these realities, FARO CREAFORM is introducing two innovations within the HandySCAN 3D MAX SeriesTM: an evolving platform to streamline the scanning process and the Mobility Kit to remove cable constraints and enable truly untethered large-part measurement.
What the EVO Platform and Mobility Enable
An Evolving Platform for Streamlined 3D Scanning
The second generation of the MAX Series features the EVO platform, an evolving architecture with an embedded screen that brings control and real-time data visualization directly onto the HandySCAN 3D MAX Series.
Built on the technology of the HandySCAN 3D EVO Series, the EVO platform was engineered to simplify the scanning process and improve ergonomics by keeping scan data and the physical part within the same line of sight. The result is a more comfortable measurement experience—even during complex or overhead scanning of large parts.
Accredited Accuracy Wherever the Part Is
The new HandySCAN 3D MAX series combines portability with FARO CREAFORM’s accredited metrology-grade accuracy and integrated photogrammetry, enabling accurate 3D measurements of large and complex parts beyond controlled environments. When paired with the Mobility Kit, the solution operates without carts or restrictive cables, allowing full mobility around large-scale parts without compromising accuracy.
Fast, Versatile 3D Scanning for Large Parts
The MAX Series is engineered to capture accurate 3D data across a wide range of part sizes and surface conditions, including challenging or highly reflective materials—without surface preparation. Combined with its fast data acquisition and continuous feedback, the system accelerates inspection and streamlines workflows for quality control (QC) and quality assurance (QA) teams.
3D Scanning for Large Parts: Benefits in Real-World Applications

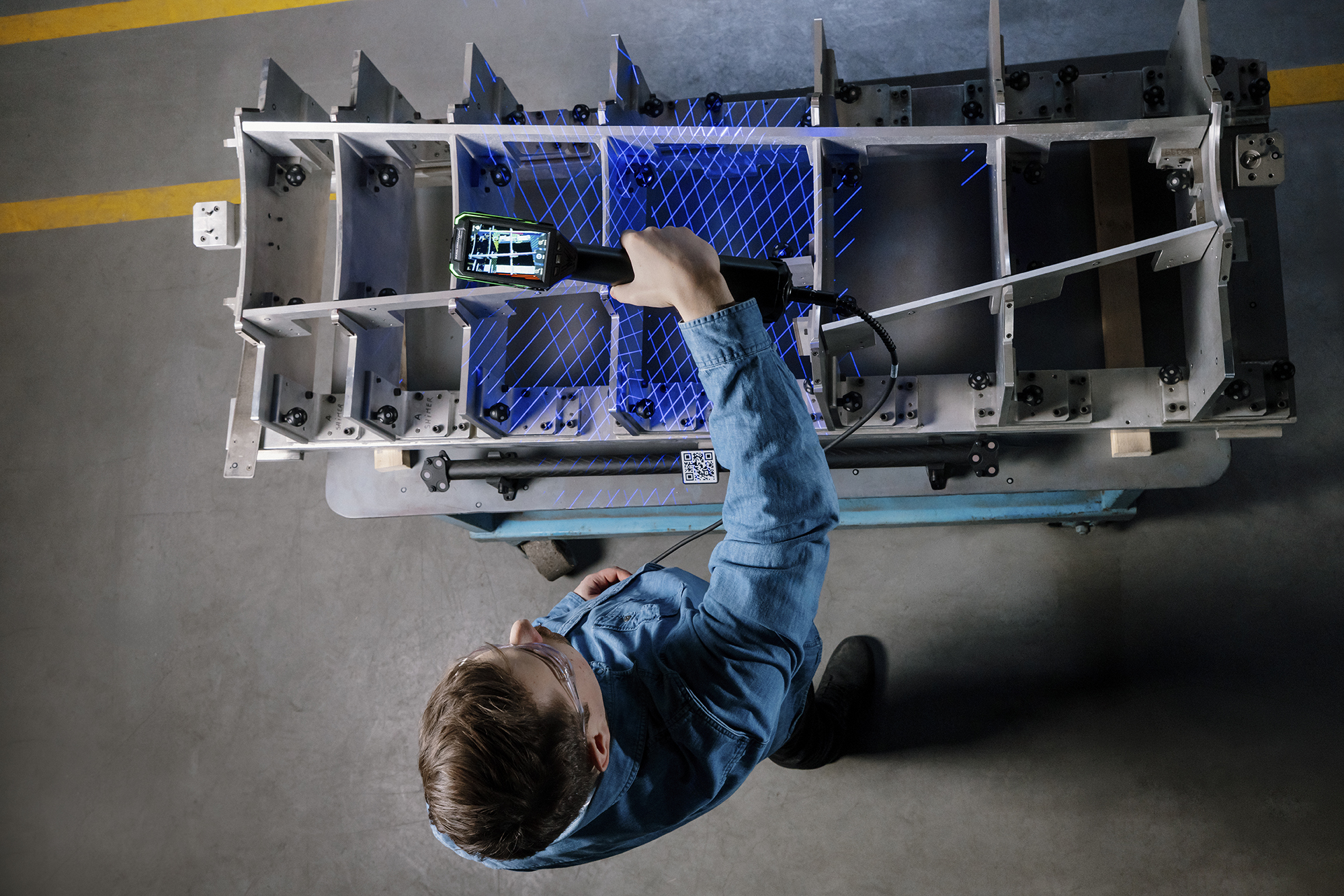

Aircraft Inspection Made Efficient with 3D Scanning
In aerospace maintenance operations, inspections must be performed on-site quickly to minimize downtime and avoid complex disassembly of the aircraft. The MAX Series handheld 3D scanners enable technicians to capture accurate 3D measurements on large structures—such as fuselage sections, wings, or structural components—without extensive setup or surface preparation.
Its lightweight design and wireless capability allow operators to move freely around the aircraft, scanning elevated surfaces or hard-to-reach areas directly on the hangar floor. Real-time mesh visualization on the device confirms data coverage during acquisition. Complete and accurate 3D measurements enable reliable inspections, helping aircraft return to service as quickly as possible.
Maintaining Transportation Assets with Fast 3D Scanners
In the transport industry, maintenance teams must inspect large components directly on-site. The MAX Series handheld 3D scanners allow operators to capture accurate measurements on-site, whether inspecting structural elements, wear surfaces, or complex assemblies, without dismantling equipment or moving it to a controlled environment.
Its wireless operation and portability enable technicians to scan large parts directly in depots, maintenance facilities, or outdoor environments where power access can be limited. Fast and accurate 3D data enables more efficient maintenance planning and helps transportation assets return to service faster.
Fast and Accurate Measurements in Power Generation with Portable 3D Scanners

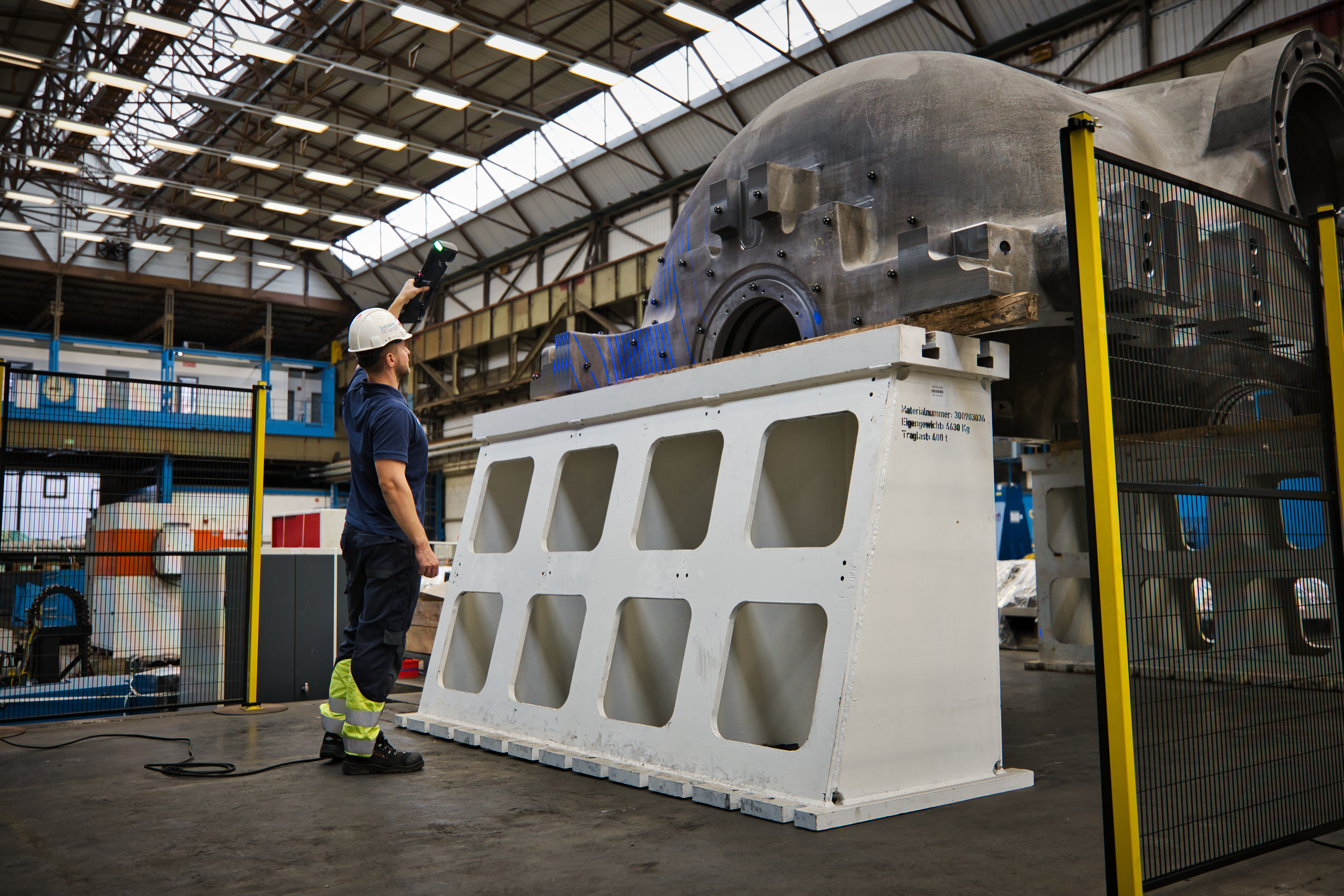

In power generation, like at Siemens Energy, the HandySCAN 3D MAX Series has become a cornerstone of on-site maintenance. Having to measure everything from boreholes to turbine rotors as large as 14 meters, teams have shifted from conventional manual tools to the MAX Series that can capture these large and complex parts quickly and accurately in shorter times.
The full mobility and fast data acquisition of the MAX Series have enabled Siemens Energy to accelerate inspections and limit downtimes during on-site maintenance. As a result, teams are efficient and can complete their work within the given time window.

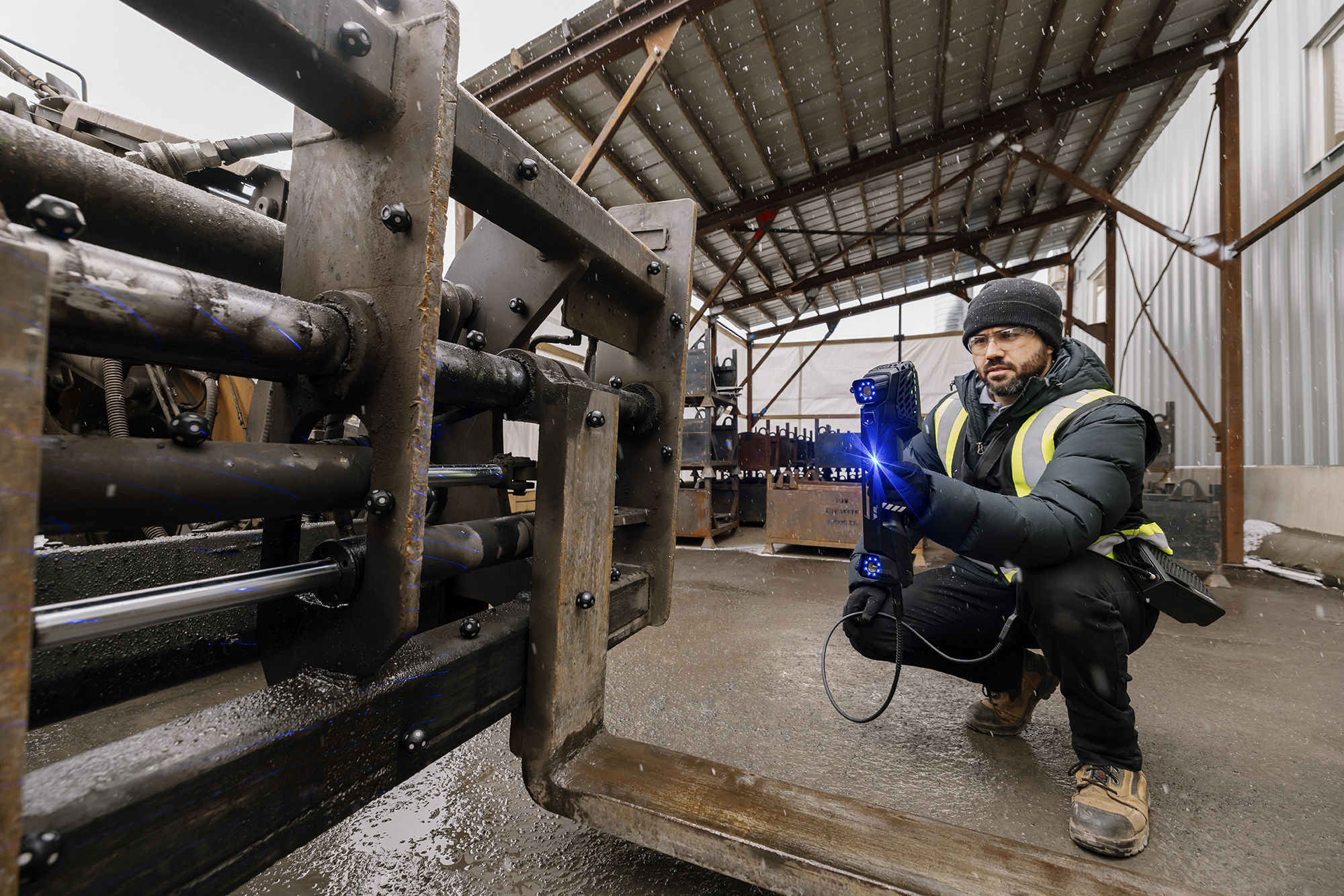

Portable 3D Scanners for Heavy-Industry Inspection Without Disruption
In the heavy industry, large machinery is rarely moved or disassembled for inspection. The MAX Series allows operators to measure large parts directly at their location without relocating industrial equipment. More importantly, the portable handheld 3D scanner remains accurate and reliable even when scanning dusty or dirty machines and operating on vibration-prone floors.
The embedded screen supports continuous focus on data coverage and reduces the risk of missing areas. With immediate data validation, scan-to-report workflows are shortened. Inspection progresses faster and adapts to the realities of the heavy industry—without interrupting operations.
Keeping Critical Mining Equipment Running with 3D Scanning

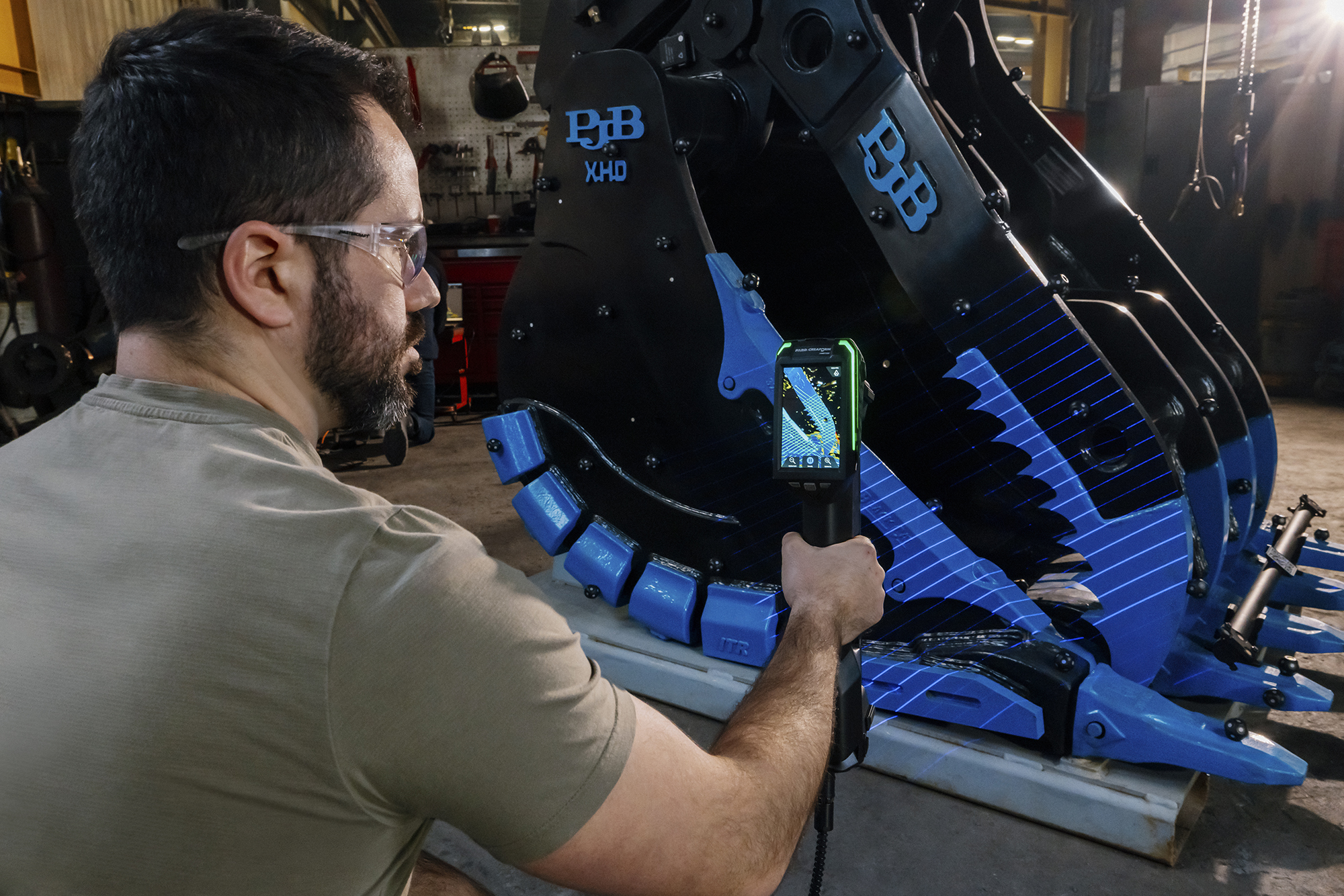

In mining operations, every minute of downtime carries high costs. The MAX Series handheld 3D scanners enable operators to move directly to the equipment—whether a bucket edge, liner, or crusher element—and begin scanning immediately, without complicated setup or part preparation.
Its lightweight design and wireless capability support scanning operations on ladders, elevated platforms, or within confined structures and hard-to-reach wear zones. Real-time mesh visualization directly on the device validates data coverage at the part, removing the need to return to a workstation for confirmation. Fast and accurate data acquisition leads to reduced maintenance delays and quicker restart of essential assets.
MAX Series with Mobility Kit: Built for the Realities of the Industry
Measuring large parts demands more than accuracy alone—it requires a handheld 3D scanner designed for environmental instability, mobility constraints, complex surfaces, and limited power sources. Through its evolving platform, wireless capability, accredited metrology-grade accuracy, and fast data acquisition, the second generation of the HandySCAN 3D MAX Series changes how large parts can be measured outside controlled environments.
Across the aerospace, transportation, mining, heavy industry, and power generation sectors, the complete experience of scanning large parts becomes more mobile, easier to validate in real time, and more efficient. The result is a 3D scanning experience built not for ideal conditions, but for the realities of the industry.
