Monitoring multiple objects in 3D space and time is now simple and easy!
Part of the Creaform Metrology Suite™, Dynamic Tracking is a software module that allows production and process engineers to track the position and orientation of multiple objects in 3D space and time. By taking simultaneous and accurate measurements, Dynamic Tracking can control displacements, guide assembly processes, and measure deformations.

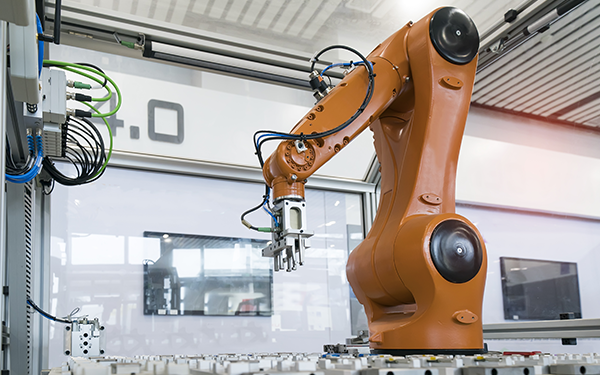

Dynamic Tracking is ideal for numerous applications, including calibrating and guiding robots, monitoring complex assembly processes, and compensating for machine tool positioning errors throughout manufacturing and deformations during testing.
Request more information
Dynamic Tracking is ideal for numerous applications, including calibrating and guiding robots, monitoring complex assembly processes, and compensating for machine tool positioning errors throughout manufacturing and deformations during testing.
Applications
-
- Assembly control and monitoring

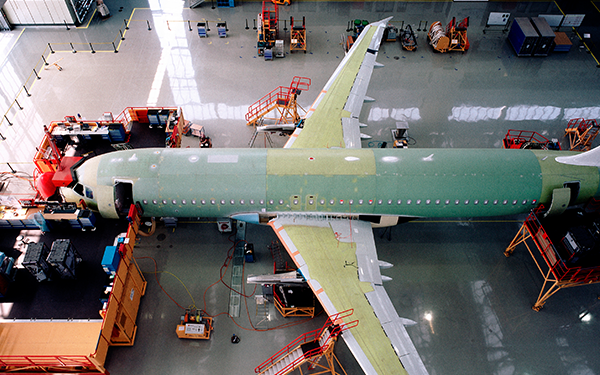

- Deformation monitoring (wings, landing gears, and tires)
-
- Movement monitoring on running parts (engine, exhaust, and wheels)
- Dynamic process control (doors and hood closing)
- Deformation monitoring (chassis and seats)
- Crash test preparation (prepositioning)
-
- On-site calibration and assessment
- Real-time course correction
- Computerized guidance of assemblies
Main features
• Rate of up to 6,600 3D points per second
• 6 DOF measuring (position and orientation) of a rigid set of reflectors
• Measuring volume from 9.1 to 16.6 m3 (320 to 586 ft3)
• Real-time curve display in VXelements
• API for interfacing with third-party applications
• 6 DOF measuring (position and orientation) of a rigid set of reflectors
• Measuring volume from 9.1 to 16.6 m3 (320 to 586 ft3)
• Real-time curve display in VXelements
• API for interfacing with third-party applications
Technical specifications
9.1 m3 - 16.6 m3
9.1 m3 - 16.6 m3
Measurement rate (reflectors/s)
Up to 6,600
Up to 6,600
Repeatability
0.013 mm (0.0005 in) - 0.020 mm (0.0008 in)
0.010 mm (0.0004 in) - 0.015 mm (0.0006 in)
Volumetric accuracy
0.068 mm (0.0026 in) - 0.100 mm (0.004 in)
0.050 mm (0.002 in) - 0.075 mm (0.003 in)
Calibrating and guiding robots or monitoring complex assembly processes?
See how Dynamic Tracking’s accuracy and efficiency can help you accelerate your manufacturing and quality control.
