Technical Specifications

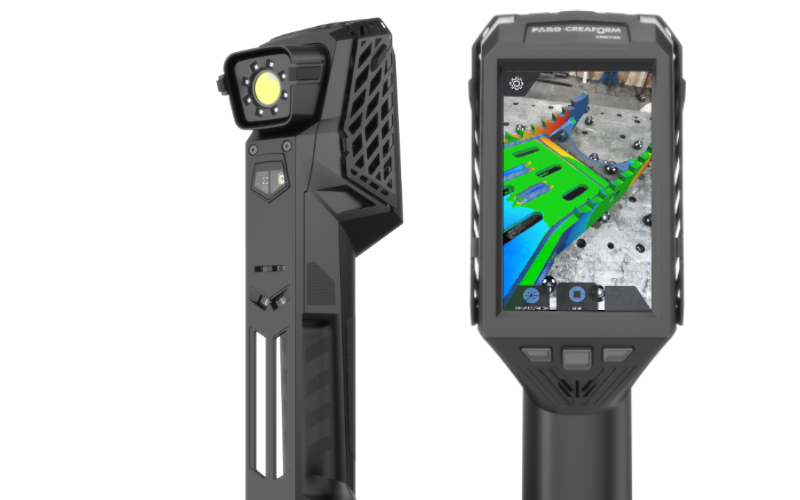

The HandySCAN 3D line-up is known as the industry standard in portable metrology-grade 3D scanners and a recognized, proven and trusted technology. Combining the inherent benefits of the HandySCAN 3D, the MAX Series is optimized to acquire highly accurate 3D measurements on large and complex parts with no surface preparation required.

Technical Specifications

Technical Specifications

Innovating technology that provides accuracy, simplicity, portability as well as real speed to your metrology-grade applications.

    HandySCAN MAX™ HandySCAN MAX™|Elite

Accuracy(1) 0.150 mm
(0.0059 in)
0.075 mm
(0.0030 in)
Volumetric accuracy(2)
(based on part size)
0.200 mm + 0.030 mm/m
(0.0079 in + 0.00032 in/ft)
0.100 mm + 0.015 mm/m
(0.0039 in + 0.00018 in/ft)
Measurement capabilities (at a working distance of 0.5 m (1.65 ft)) Pin 2.50 mm
(0.0984 in)
Hole 3.50 mm
(0.1378 in)
Step 0.04 mm
(0.0016 in)
Wall 2.00 mm
(0.0787 in)
Measurement resolution 0.04 mm
(0.0016 in)
Mesh resolution 0.4 mm
(0.0157 in)
Measurement rate 2 250 000 measurements/s
Light source 38 blue laser lines
Laser class 2M
(eye-safe)
Scanning area 1 x 1 m
(3.3 x 3.3 ft)
Working distance 0.45 to 1.60 m
(1.5 to 5.2 ft)
0.30 to 2.50 m
(1.0 to 8.2 ft)
Depth of field 1.15 m
(3.8 ft)
2.20 m
(7.2 ft)
Part size range (recommended) 1–10 m
(3.3–32.8 ft)
1–15 m
(3.3–49.2 ft)
Software VXelements
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software(3) 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight 1.22 kg
(2.7 lb)
Dimensions
(LxWxH)
133 x 79 x 435 mm
(5.2 x 3.10 x 17.10 in)
Connection standard 1 X USB 3.0
Operating temperature range 5-40 °C
(41-104 °F)
Operating humidity range
(non-condensing)
10-90%
Certifications EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
Patents CA 2,600,926, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 10,271,039, JP 6,596,433, CA 2,938,104, KR 10-2424135

(1) HandySCAN MAX and HandySCAN MAX|Elite (ISO 17025 accredited): Based on VDI/VDE 2634 part 3 standard. Probing error performance is assessed with diameter measurements on traceable sphere artefacts. Results are obtained at stand-off distance of 0.6 m and 1.2 m (1.98 ft and 3.96 ft).

(2) HandySCAN MAX and HandySCAN MAX|Elite (ISO 17025 accredited): Based on VDI/VDE 2634 part 3 standard. Sphere-spacing error is assessed with traceable length artefacts by measuring these at different locations and orientations within the working volume. Results are obtained at stand-off distance of 0.6 m and 1.2 m (1.98 ft and 3.96 ft) and using integrated photogrammetry with volumetric accuracy optimization.

(3) Also compatible with all major metrology, CAD, and computer graphic software through mesh and point cloud import.
